Compact Signal Analyzer for Easy Electronic Testing

Portable Measurement and Purpose

This compact signal analyzer is engineered to help you easily observe and interpret electronic signals while on the go. Its handheld design simplifies basic diagnostics, educational tasks, or troubleshooting without requiring a bulky benchtop model. The clarity, precision, and ease of use of measurements will depend on the type of signal, the setup, and the user's familiarity with the device.

Real-Time Visualization and User Control

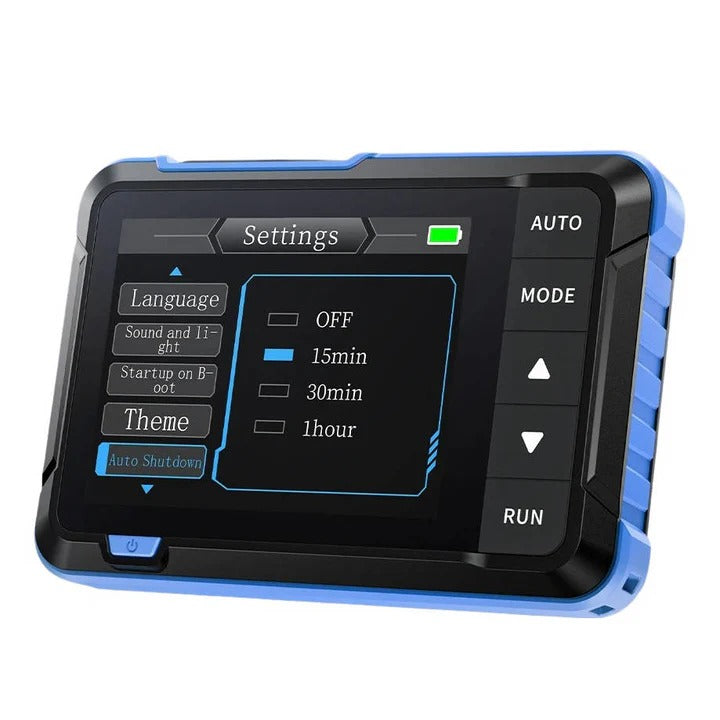

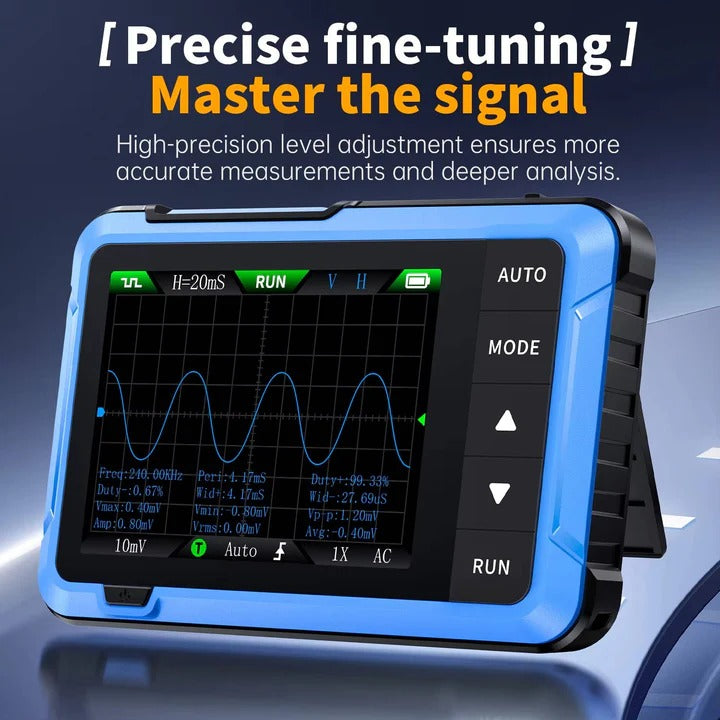

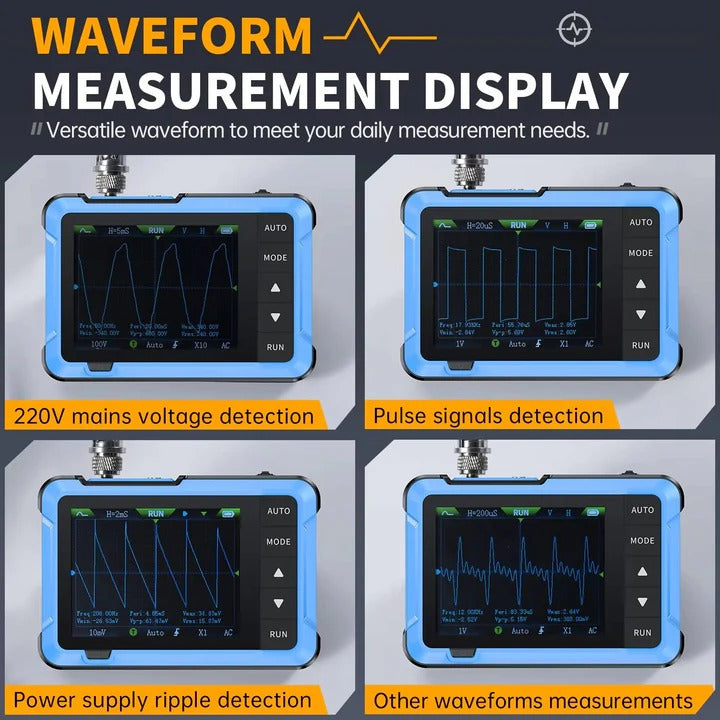

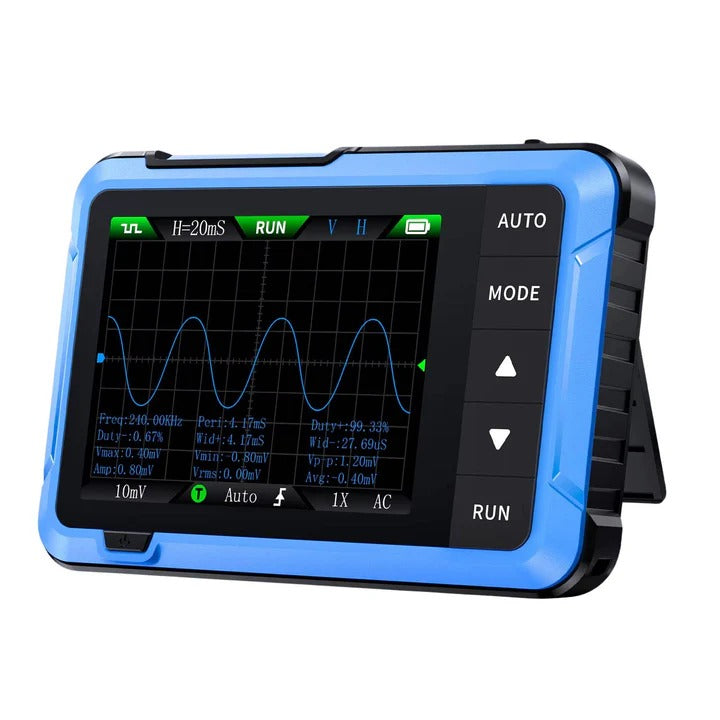

The instrument is equipped with a 2.8-inch LCD display that shows waveform data in real time. It features an automatic configuration option to facilitate basic signal capture, adjusting settings based on the detected input. You can choose from various trigger modes like Auto, Normal, and Single to accommodate different observation needs. The responsiveness of the display and the performance of signal capture may differ based on the characteristics of the signals being analyzed.

Available Models and Features

There are two versions available to meet diverse user needs. The Basic model is designed for straightforward signal monitoring and educational usage, while the Advanced model provides enhanced sampling rates and bandwidth for more intricate signal analysis. Both models incorporate protective circuitry to handle a variety of input voltages. The actual limits of operation and the effectiveness of protection can vary based on usage conditions and proper handling.

Product Features

• Display: 2.8-inch HD LCD (320x240)
• Max Voltage: ±400V
• Battery Life: Up to 4 Hours (1000mAh)
• Trigger Modes: Single, Normal, Auto
• Basic Specs: 5MS/s Rate, 1MHz Bandwidth, 10KHz Generator
• Advanced Specs: 48MS/s Rate, 10MHz Bandwidth, 50KHz Generator

Included Components

• 1 x Portable Signal Analyzer
• 1 x Alligator Clip Probe
• 1 x Charging Cable
• 1 x Lanyard
• 1 x User Manual
• Advanced Model Only: 1 x 100MHz Passive Probe & Adapter

Common Questions

What distinguishes the Basic model from the Advanced model?
The Advanced model is equipped with improved sampling rates and bandwidth for more sophisticated signal analysis. The suitability of performance may vary depending on the application.

What is the expected battery duration?
The battery is designed to last for up to 4 hours. Actual battery life may fluctuate based on screen brightness, usage habits, and settings.

Is this device safe for high voltage measurements?
The analyzer features circuitry designed to handle higher voltages within stated limits. Users should adhere to guidelines closely and ensure compatibility with their intended applications.

Does it offer an auto-set function?
Yes, the device includes an AUTO feature to aid in setting up basic signal displays. Results may differ based on the stability and characteristics of the signal.
